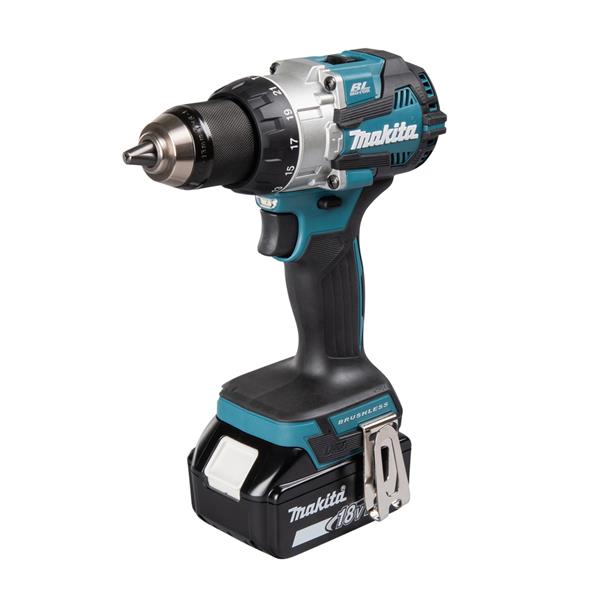

DHP489 Combi Drill
- 18v, 0 – 1 800 minˉ¹, 620 W
Model DHP489 is cordless hammer driver drill powered by 18V LXT® Li-Ion battery
The main features and benefits are: Excellent drilling capacity: Achieve exceptional drilling capacity, effortlessly tackling 2x lumber with up to 1" ship auger bit in high speed mode, Robust keyless drill chuck with single metal sleeve, Metal gear housing.
User benefits
- Built-in LED light with pre-glow and afterglow functions illuminates the work area.
- Battery protection system automatically shuts off power when the battery level is low.
- Single sleeve keyless chuck enables easy bit installation/removal with one hand.
- Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque.
- Electric brake for maximum productivity and increased operator safety.
- Reversing switch is conveniently located.
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions.

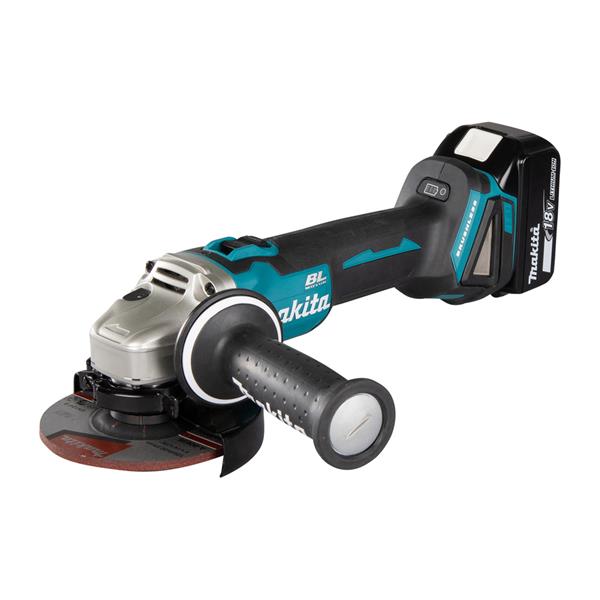

DGA504 Angle Grinder
- 18V • 125 mm • 8 500 min⁻¹
Efficient brushless tool for cutting and grinding
A small, brushless angle grinder with a 125 mm wheel for demanding professional use. Constant speed electronics, overload protection and AVT anti-vibration side grip.
User benefits
- Brushless maintenance-free and long-life motor.
- Slim body design for a good grip.
- Electronic overload protection protects the user and the device.
- ADT (Automatic torque Drive Technology) adjusts speed and torque during operation for optimum performance.
- 3-stage LED gauge indicates battery charge level / overheating / overload.
- Battery protection system automatically shuts off power when the battery level is low.

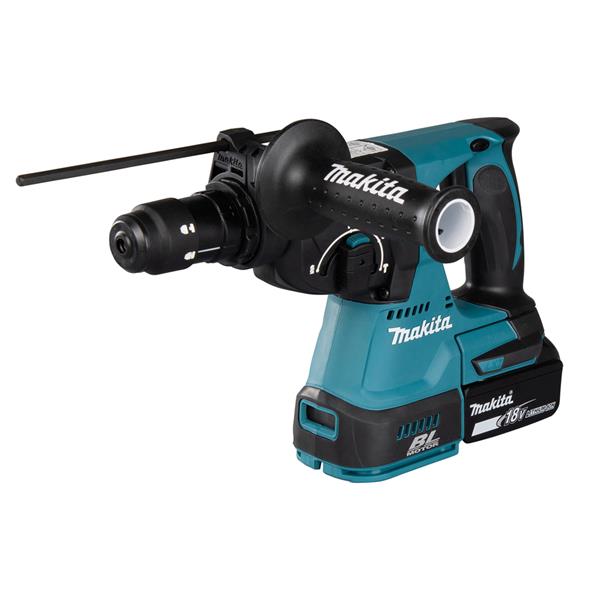

DHR243 Rotary Hammer
- 18V • SDS-PLUS • 24 mm • 2.0 J
Brushless, three-mode rotary hammer with quick-change chuck
An efficient rotary hammer with an anti-vibration handle and quick-change chuck that accepts SDS-PLUS bits. Suitable for impact and unstressed drilling, plus chipping. Speed range of 0 – 950 min⁻¹. Impact energy of 2.0 J and max. drilling capacity of 24 mm in concrete.
User benefits
- 3-Mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications.
- Brushless maintenance-free and long-life motor.
- Battery protection circuit protects against overloading, over-discharging and over-heating.

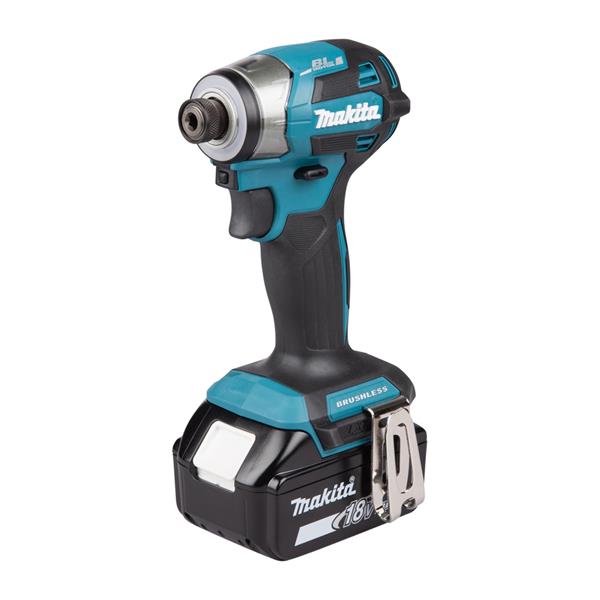

DTD173 Impact Driver
- 18V, 1/4", 180 Nm, 0 - 3 600 min⁻¹
User benefits
- Electronic 4 stage impact power selection for added versatility.
- Well balanced with a low center of gravity for easy operation.
- Slim body design for a good grip.
- Electric brake for maximum productivity and increased operator safety.
- Anti wobbling bit structure.
Technical Information
DHP489 Combi Drill
- Nominal Battery Voltage: 18 V
- Voltage LXT: Yes
- Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
- Brushless Motor: Yes
- No load speed: 0 - 550 / 1800 min⁻¹
- Max. fastening torque Hard/Soft: 73 / 40 Nm
- Max Torque: 110 Nm
- Torque setting: 21
- Impacts per Minute (IPM): 0 - 8250 / 27000 min⁻¹
- Max. Drilling Diameter in Masonry: 16 mm
- Max. Drilling Diameter in Steel: 13 mm
- Drilling Capacity Wood (Auger Bit): 38 mm
- Drilling Capacity Wood (Self-feed bit): 51 mm
- Drilling Capacity Flat bit: 38 mm
- Drilling Capacity Hole Saw: 51 mm
- Driving Shank: 1/2"-20UNF "
- Drill Chuck Capacity: 1,5 - 13 mm
- Electronic brake: Yes
- Vibration Level, Drilling into metal: ≤ 2,5 m/s²
- Vibration Uncertainty (K Factor), Drilling into metal: 1,5 m/s²
- Vibration Level, Impact Drilling into Concrete: 9,5 m/s²
- Vibration Uncertainty (K Factor), Impact Drilling into Concrete: 1,5 m/s²
- Sound Power Level (LWA): 92 dB(A)
- Sound Pressure Level (LpA): 84 dB(A)
- Noise Uncertainty (K Factor): 3 dB(A)
- Product Dimensions (L x W x H):: 175 x 81 x 261 mm
- Tool weight with battery: 1,8 - 2,5 kg
- Product net weight: 1,5 kg
DGA504 Angle Grinder
- Nominal Battery Voltage: 18 V
- Voltage LXT: Yes
- Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
- Brushless Motor: yes
- No load speed: 8500 min⁻¹
- Spindle Thread: M14
- Bore Size (Arbor Diameter): 22,23 mm
- Disc Diameter: 125 mm
- Anti-Restart Function (NVR Switch): Yes
- Vibration Level, Disc Sanding: ≤ 2,5 m/s²
- Vibration Uncertainty (K Factor), Disc Sanding: 1,5 m/s²
- Vibration Level, Surface Grinding: 6,5 m/s²
- Vibration Uncertainty (K Factor), Surface Grinding: 1,5 m/s²
- Sound Power Level (LWA): 90 dB(A)
- Sound Pressure Level (LpA): 82 dB(A)
- Noise Uncertainty (K Factor): 3 dB(A)
- Product Dimensions (L x W x H):: 362 x 140 x 145 mm
- Tool weight with battery: 2,3 - 3,7 kg
- Max. Depth of Cut: 29 mm
DHR243 Rotary Hammer
- Nominal Battery Voltage: 18 V
- Voltage LXT:
- Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
- Brushless Motor: Yes
- Impact Energy: 2,0 J
- Optimum Drilling Diameter Range in Concrete: 4 - 16 mm
- Max. Drilling Diameter in Concrete: 24 mm
- Max. Drilling Diameter in Wood: 27 mm
- Max. Drilling Diameter in Steel: 13 mm
- Impacts per Minute (IPM): 0 - 4700 min⁻¹
- No load speed: 0 - 950 min⁻¹
- Drilling diameter with TCT core bit: 54 mm
- Adapted for SDS-PLUS bits: yes
- Tool weight with battery: 3,2 - 3,7 kg
- Electronic brake: Yes
- Vibration Level, Hammer Drilling Into Concrete: 15,8 m/s²
- Vibration Uncertainty (K Factor), Hammer Drilling Into Concrete: 1,5 m/s²
- Vibration Level, Chiselling: 11,2 m/s²
- Vibration Uncertainty (K Factor), Chiselling: 1,5 m/s²
- Sound Power Level (LWA): 99 dB(A)
- Sound Pressure Level (LpA): 91 dB(A)
- Noise Uncertainty (K Factor): 3 dB(A)
- Product Dimensions (L x W x H):: 353 x 85 x 213 mm
- Vibration Level, Drilling into metal: 2,5 m/s²
- Vibration Uncertainty (K Factor), Drilling into metal: 1,5 m/s²
DTD173 Impact Driver
- Nominal Battery Voltage: 18 V
- Voltage LXT: Yes
- Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
- Brushless Motor: Yes
- No load speed: 0 - 1100 / 2100 / 3200 / 3600 min⁻¹
- Max Fastening Torque Impact Drill: 20 / 50 / 170 / 180 Nm
- Impacts per Minute (IPM): 0 - 1100 / 2600 / 3600 / 3800 min⁻¹
- Tightening Capacity Standard Bolt: M5 - M16
- Capacity machine screw: M4 - M8
- Tightening Capacity High Tensile Bolt: M5 - M14
- Driving Shank: 1/4 "
- Sound Power Level (LWA): 108 dB(A)
- Sound Pressure Level (LpA): 97 dB(A)
- Noise Uncertainty (K Factor): 3 dB(A)
- Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool: 12,9 m/s²
- Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the
- Tool: 1,5 m/s²
- Product Dimensions (L x W x H):: 111 x 81 x 234 mm
- Tool weight with battery: 1,2 - 1,5 kg
- Product net weight: 0,85 kg
