Milwaukee M12™ Green 360° 3 Plane Laser - M12 3PLKIT-401P - 4933478990

€849.00 Ex. VAT

Code 4933478990

Product Description & Features

Milwaukee M12™ Green 360° 3 Plane Laser - M12 3PLKIT-401P - 4933478990

FEATURES:

• M12™ green 360° 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool
• Built with high intensity green diodes to provide maximised visibility - up to 4x better visibility vs red lasers
• High intensity green beams provide a working range of 38 m and up to 100 m with a detector
• Provides all-day run time of 15+ hours with an M12 B4 battery pack
• 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport

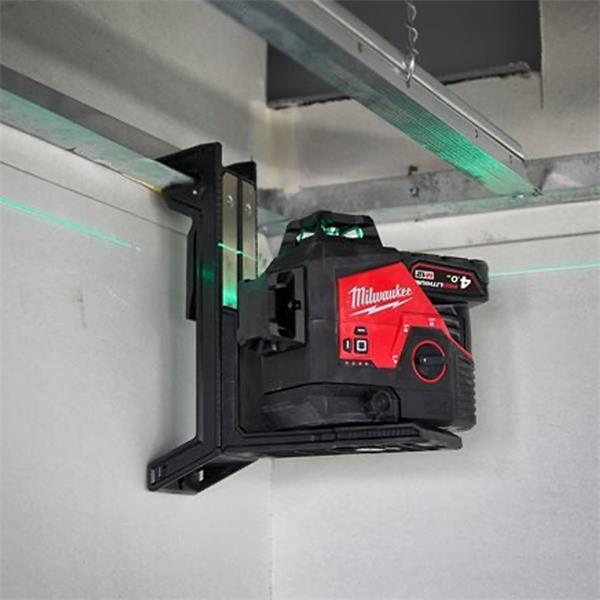

• Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼? and ?? tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod
• The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
• Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
• Flexible battery system: works with all MILWAUKEE® M12™batteries

Technical Specification

BASIC INFORMATION:

• ARTICLE NUMBER: 4933478990
  EAN CODE: 4058546362720

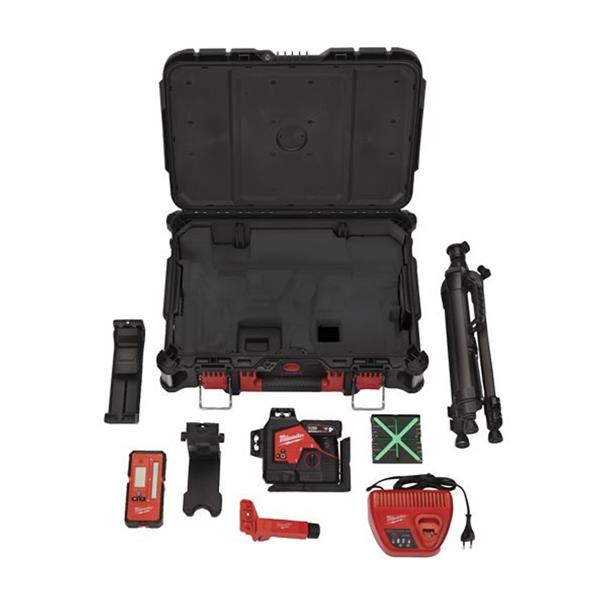

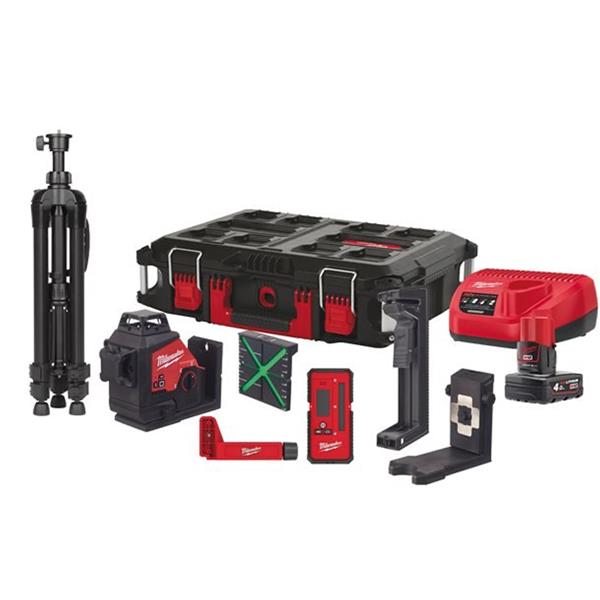

  STANDARD EQUIPMENT: HIVIST, LLD50, LM360, TRP120, Track Clip

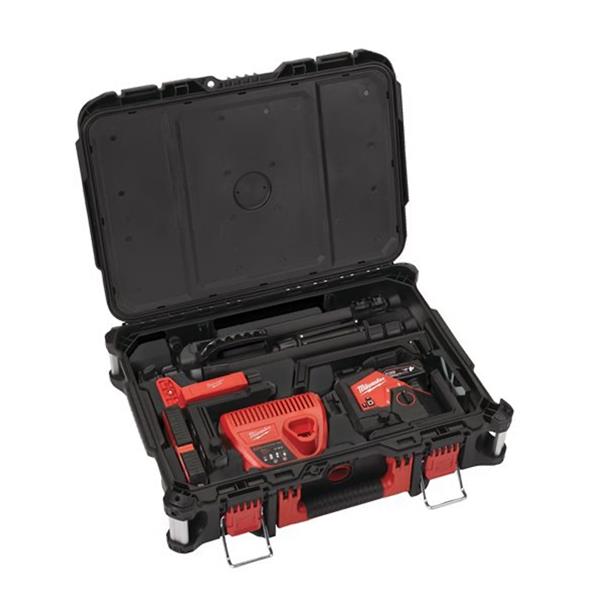

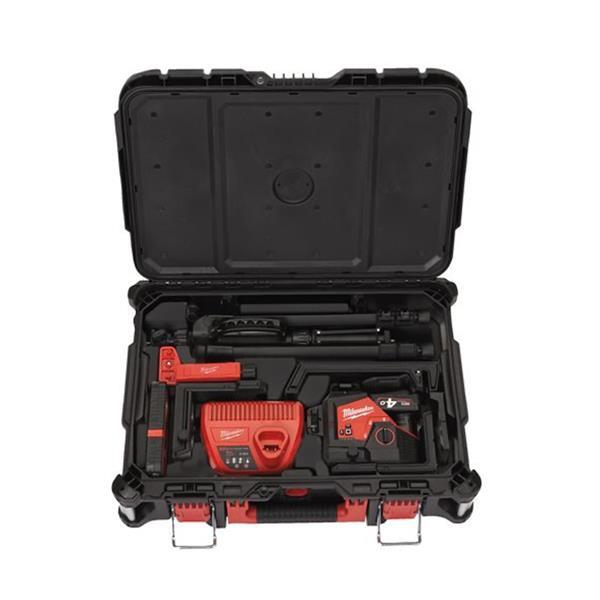

  SUPPLIED IN: PACKOUT™ box

PERFORMANCE:

• ACCURACY [MM|M]: 0.3
  COLOUR OF LASER LINE: Green
  COMPATIBLE LASER DETECTOR: LLD50 / LRD100
  KIT INCLUDED: 1 x M12 B4 Battery pack, C12 C Charger, PACKOUT™ box
  LASER CLASIFICATION: Class 2
  LASER PROJECTION: 2x vertical, 1x horizontal
  MAX. RUN TIME WITH M12 B4 BATTERY [H]: 15
  SELF LEVELLING RANGE [°]: 4.0
  SELF LEVELLING TIME [S]: 3
  WORKING RANGE DETECTOR [M]: 50 / 100
  WORKING RANGE VISIBLE [M]: 38.0

POWER SOURCE:

• BATTERY PACK CAPACITY (AH):4.0
  BATTERY TYPE:Li-ion
  CHARGER INCLUDED: C12 C
  NO. OF BATTERIES SUPPLIED: 1
  VOLTAGE (V): 12

WEIGHT:

• WEIGHT WITH BATTERY PACK (EPTA) (KG): 1.5 (M12 B4)

What's In the Box

• KIT INCLUDED: 1 x M12 B4 Battery pack, C12 C Charger, PACKOUT™ box

Supplied in Shipping Carton
