Stihl TS420 - 14" Consaw - 350mm

€865.00 Ex. VAT

New
Stihl TS420 - 14" Consaw - 350mm Stihl TS420 - 14" Consaw - 350mm
Code TS420


Add to Basket
Product Description & Features

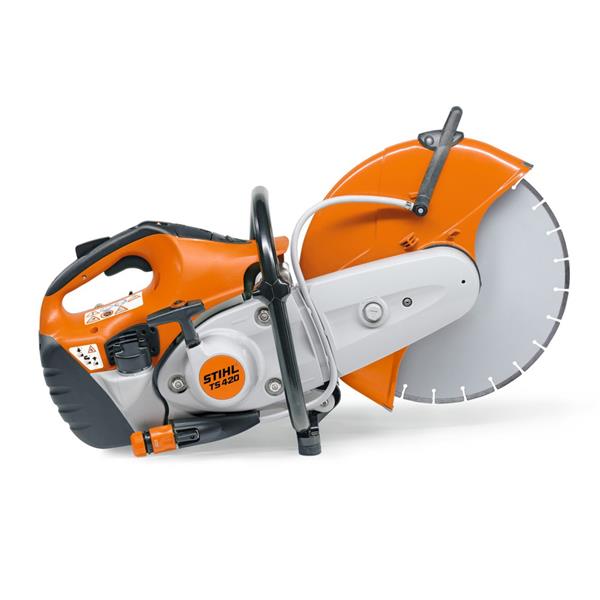

Stihl TS420 - 14" Consaw - 350mm

TS 420 PETROL CUT-OFF MACHINE: COMPACT AND ROBUST 3.2-KW CUT-OFF MACHINE (350MM CUTTING WHEEL)

Long-life filter system with cyclone pre-separation makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. Fitted as standard with a powerful 14” / 350mm composite resin cutting wheel which has a very good cutting performance, however we recommend fitting with a D-SB90 diamond cutting wheel for longer and more intensive jobs. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel.

Features

  • All-purpose, user-friendly cut-off machine
  • For use in road construction and landscaping
  • Precise cut guidance with the STIHL anti-vibration system
  • Low-maintenance filter system thanks to cyclone routing
  • For 350 mm cutting wheels

See Description Box Below for More Features

Technical Specification
  • Displacement 66.7 cm³
  • Power 3.20 kW
  • Engine power 4.40 HP
  • CO2 747 g/kWh
  • Device weight without refuelling 9.8 kg 1)
  • Cutting disc diameter 350 mm
  • Max. cutting depth 125 mm
  • Device length with cutting disc 72 cm
  • Sound pressure level 98 dB(A) 2)
  • Sound power level 109 dB(A) 3)
  • K-value (sound pressure level) 2 dB(A) 4)
  • K-value (sound power level) 2 dB(A) 4)
  • Vibration level left 3.9 m/s²
  • Vibration level right 3.9 m/s²
What's In the Box
  • 1 x Stihl TS420 - 14" Consaw - 350mm

Supplied in Shipping Carton

Delivery Info

At P.T.R.S. Ltd. we are pleased to offer both Delivery and Click & Collect options. Delivery is FREE on orders over €75 and Click & Collect is always free.

View our full Delivery & Collection information?

Returns Policy

 x We at P.T.R.S. Ltd, pride ourselves with the high-quality of the products we supply to our customers. We do of course understand that not every product is made equal and that sometimes there are cases where the product itself is not fit for purpose or simply does not suit the reason it was bought for.

For this reason we are happy to accept items returned to us within 14 days of delivery. We offer you an exchange or full refund to your credit or debit card once we receive the items & process them in our warehouse.

View our full Returns Policy for details?

Back to results page
Click to view complete product details

Description

  • FOR FEWER STARTING STROKES. The manual fuel pump reduces the number of strokes required to start the power tool, making the start-up process quicker and easier This is particularly helpful after longer breaks in operation. To use it, actuate the pump several times before starting. This will ensure that there is enough petrol in the system when starting.
  • REDUCED MAINTENANCE. The compensator is a control system in the carburettor, which uses pressure compensation to ensure that engine performance, exhaust gas quality and fuel consumption remain virtually constant over a long period of time, despite increasing contamination of the air filter. You do not need to clean the air filter until there is a noticeable drop in performance. This means that you can work for a long time without maintenance.
  • EFFORTLESS START-UP. The decompression valve makes it easier to start your power tool. When starting, you can allow some of the compressed mixture to escape from the cylinder by opening the valve. This protects the start-up system and reduces the amount of force required on the starter cord.
  • FOR DUST BINDING AND COOLING. For work with your power tool, this provides a permanent water supply to the cutting wheel. It is used to bind dust and cool the cut. The dosable water connection directly on the machine makes cutting with water easy and convenient.
  • EXTENDS THE BELT’S SERVICE LIFE. Semi-automatic STIHL belt tensioning makes it easier for you to re-tension the drive belt. Consistent tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, please refer to the operating instructions of your power tool.
  • ENSURES A LONG FILTER SERVICE LIFE. The long-life air filter system for cut-off machines does not collect coarse dust particles, but uses cyclone air routing to separate them and then discharges them into the ambient air. With just this first step the system removes around 80% of dust particles in the intake air. This enables an extremely long filter service life, and makes the tool easy to maintain.
  • FOR PRECISE GUIDANCE. The ergonomic handle not only ensures you have a firm grip on the power tool, it also enables you to make precise cuts and guide them along marked lines. The quiet running and low vibration of the machine allows you to make precise cuts comfortably.
  • HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.
  • FOR MORE PLEASANT WORK. Vibrations can occur when you put your power tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of vibrations to the handle area and therefore to your body. The result is that your power tool is more comfortable to hold and your work is much less tiring.
