Trend Craft Thin Saw Blade - 136mmD x 24T x 20B x 1.5Kerf - CSB/13624TA

€25.50 Ex. VAT

Code CSB_13624TA

Product Description & Features

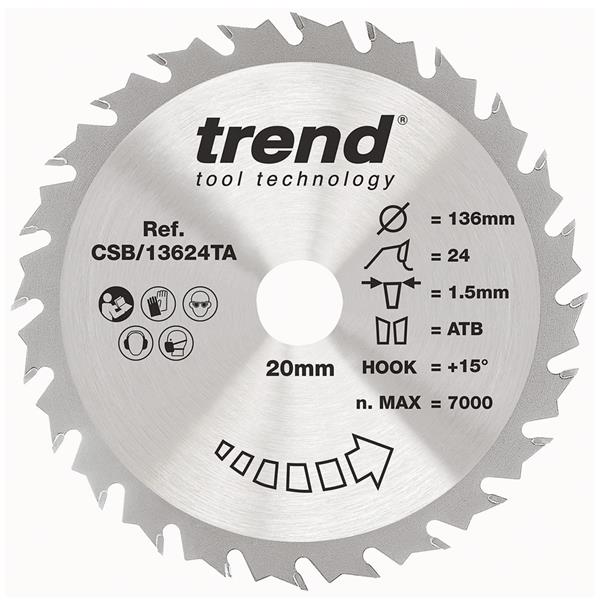

Trend Craft Thin Saw Blade - 136mmD x 24T x 20B x 1.5Kerf - CSB/13624TA

Cordless TCT Sawblades

• A range of Tungsten Carbide Tipped blades for crosscutting & ripping wood and wood-based materials using cordless mitre and circular saws

Trend Craft Pro saw blade - 136mm diameter 20mm bore 24tooth TCT for cordless saws

• The perfect replacement blade for smaller trimsaws. With 24 tooth ATB (Alternate Top Bevel) configuration ideal for general purpose ripping and crosscut work.

• Featuring a 15 degree hook, 1.5mm kerf tooth pattern with 1mm plate thickness to ensure fast, crisp and clean cuts on timber, ply, MDF, chipboard and laminates.

• The precision reamed 20mm bore is designed as a high quality direct replacement for saws including the Makita DSS501Z.

• The Trend blade utilises a high grade alloy steel plate, hardened and tempered to maintain flat and true performance for assured accuracy and longevity.

• Premium quality Microgranular Tungsten Carbide tips are silver brazed and precision ground for high end performance and edge retention across the board.

• Not for use with Bosch GSK 24.

Detail

• Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.

• Alternate Top Bevel (ATB) Profile with a positive hook delivers an efficient cutting action for fast stock removal. A combination variant with an Alternate Top Bevel +Raker (ATBR) Profile with a positive hook is also available.

• Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.

• Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.

• Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.

• Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.

• Etched Blade Information to EN847 safety standard.

• Reamed Bore ensures precise spindle fit.

Technical Specification

• D: 5 3/8 inches

• D: 136 mm

• Bore: 20 mm

• Kerf: 1.5 mm

• Plate thick: 1.0 mm

• No. of Teeth: 24

• Tooth form: ATB

• Hook: 15 degrees

• Quick Selector No.: T2B

• Colour Code: Red

• Type: Combination

• Cut Finish: Medium

• Max rpm: 7000

What's In the Box

• 1 x Trend Craft Thin Saw Blade - 136mmD x 24T x 20B x 1.5Kerf - CSB/13624TA

Supplied in Shipping Carton
