Trend LOCK/JIG/C - Professional Lock Jig

€139.00 Ex. VAT

Code LOCK_JIG_C

Product Description & Features

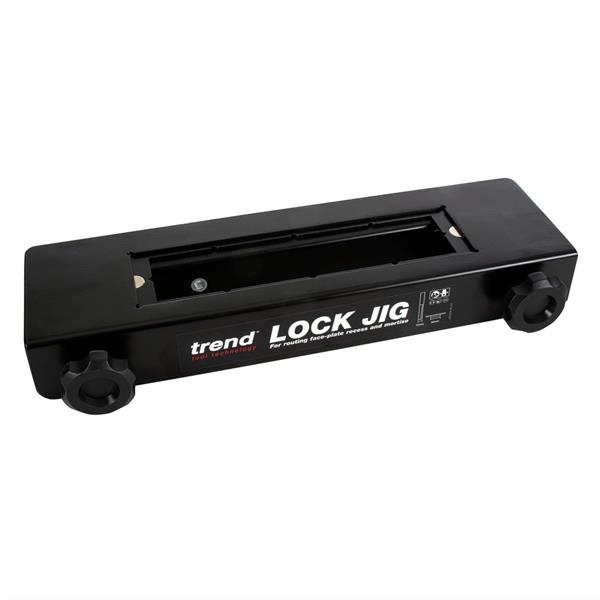

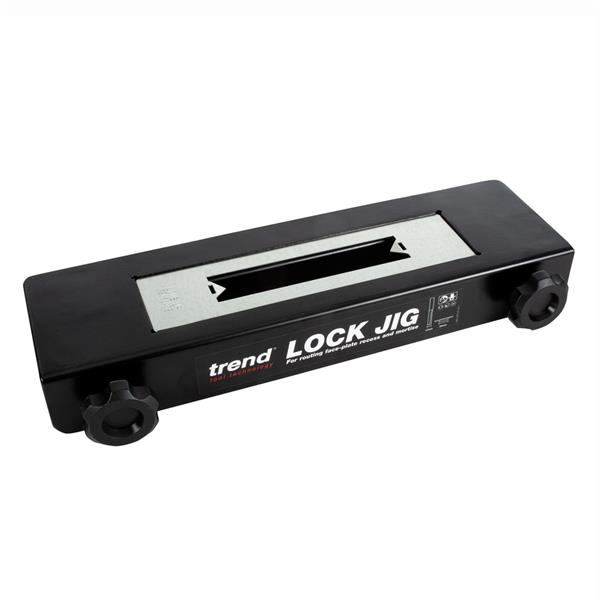

Trend LOCK/JIG/C - Professional Lock Jig

Description

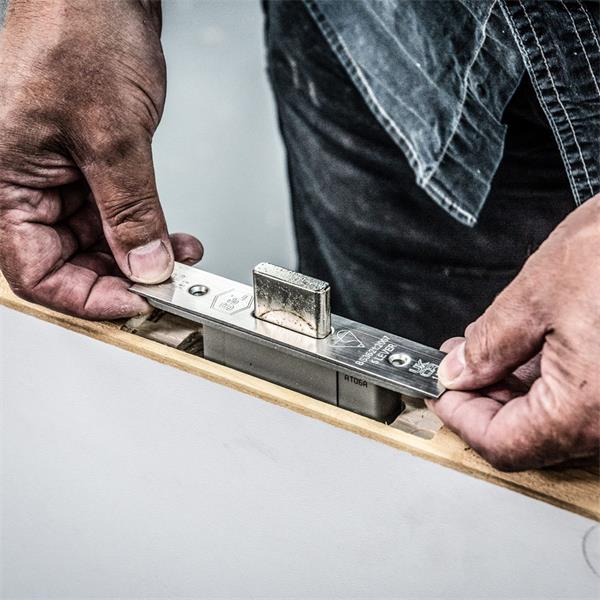

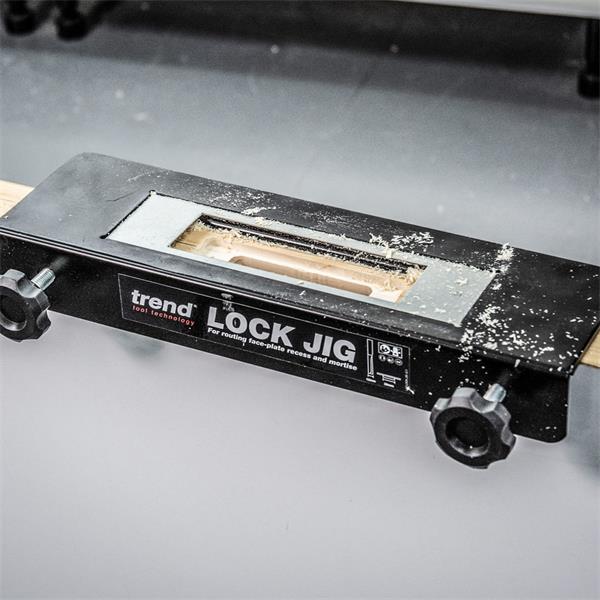

A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and tubular latches from leading ironmongery brands

Features

• .Steel Construction for maximum strength, durability and accuracy.

• Full-Length Adjustable Fence to accommodate all doors between 34mm and 58mm thick.

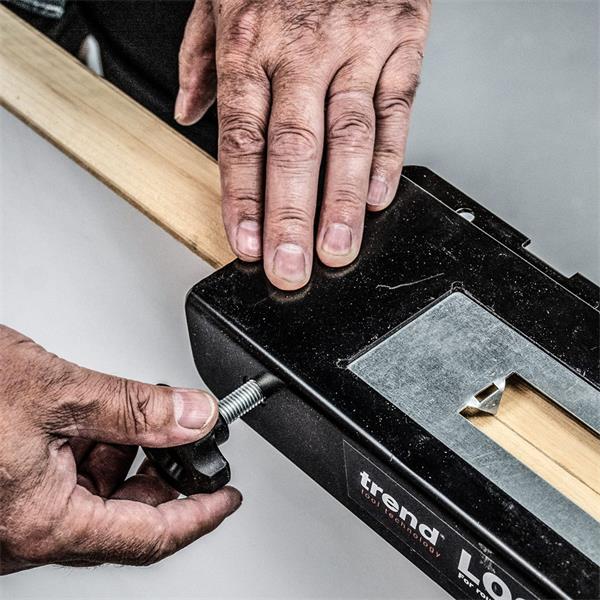

• Quick-Release Clamps with non-marring pads ensure the jig is held securely.

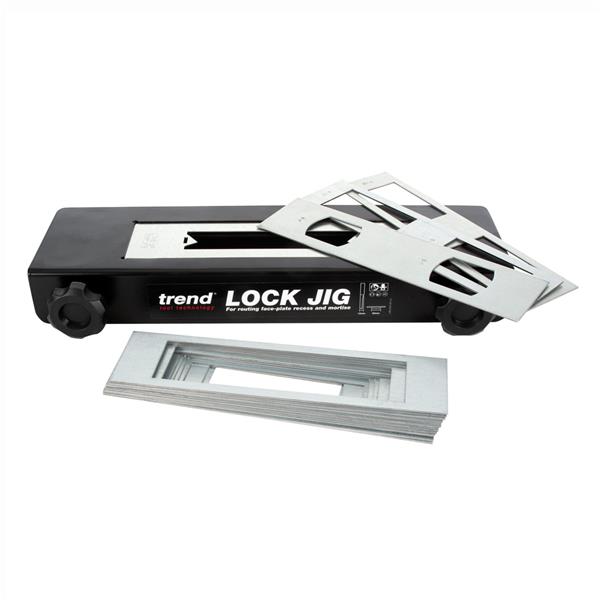

• 20 Interchangeable Templates to suit all common lock case and face plate sizes.

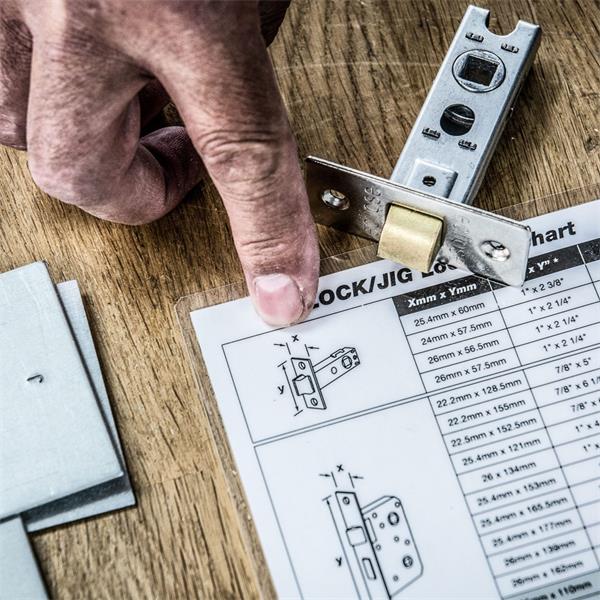

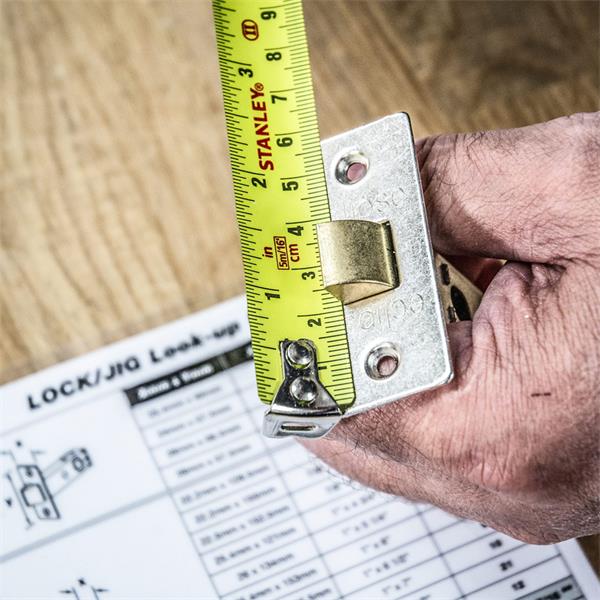

• Easy Reference Chart ensures that correct templates are found quickly.

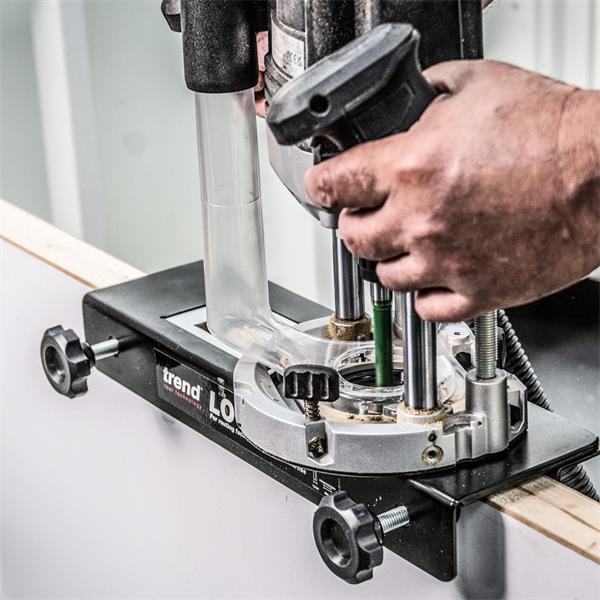

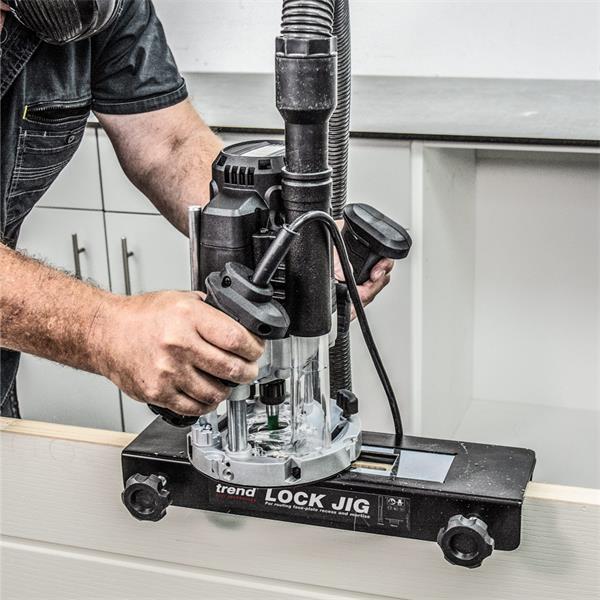

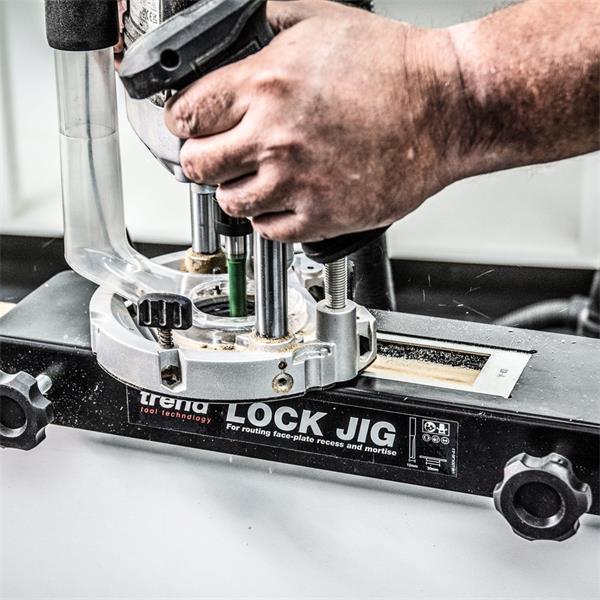

• Requires: ½”/12mm Plunge Router (80mm plunge depth), ½”/12mm Router Cutter (12mm cut diameter x 63mm cut length), and 30mm Guide Bush.

Technical Specification

• Door thickness min.: 34 mm

• Door thickness max.: 58 mm

Faceplate Templates:

• 25.4 x 60.0mm (Tubular Latch): 22(A)

• 24.0 x 57.5mm (Tubular Latch): 22(B)

• 26.0 x 56.5mm (Tubular Latch): 23(A)

• 26.0 x 57.5mm (Tubular Latch): 23(B)

• 22.2 x 128.5mm: 20

• 22.2 x 155.0mm: 1

• 22.5 x 152.5mm: 2

• 25.4 x 121.0mm: 3

• 26.0 x 134.0mm: 5

• 25.4 x 153.0mm: 7

• 25.4 x 165.5mm: 9

• 25.4 x 177.0mm: 10

• 26.0 x 139.0mm: 21

• 26.0 x 162.0mm: 12

Mortise Templates:

• 19 x 22mm (Tubular Latch): J(A)

• 22 x 24mm (Tubular Latch): J(B)

• 16 x 72mm: A

• 16 x 102mm: F

• 16 x 109mm: B

• 19 x 78mm: C

• 19 x 90mm: E

• 19 x 109mm: D

• 19 x 115mm: H

What's In the Box

• 1 x Trend LOCK/JIG/C - Professional Lock Jig

Supplied in Shipping Carton
